MiniTRX-Z

MiniTRX-Z

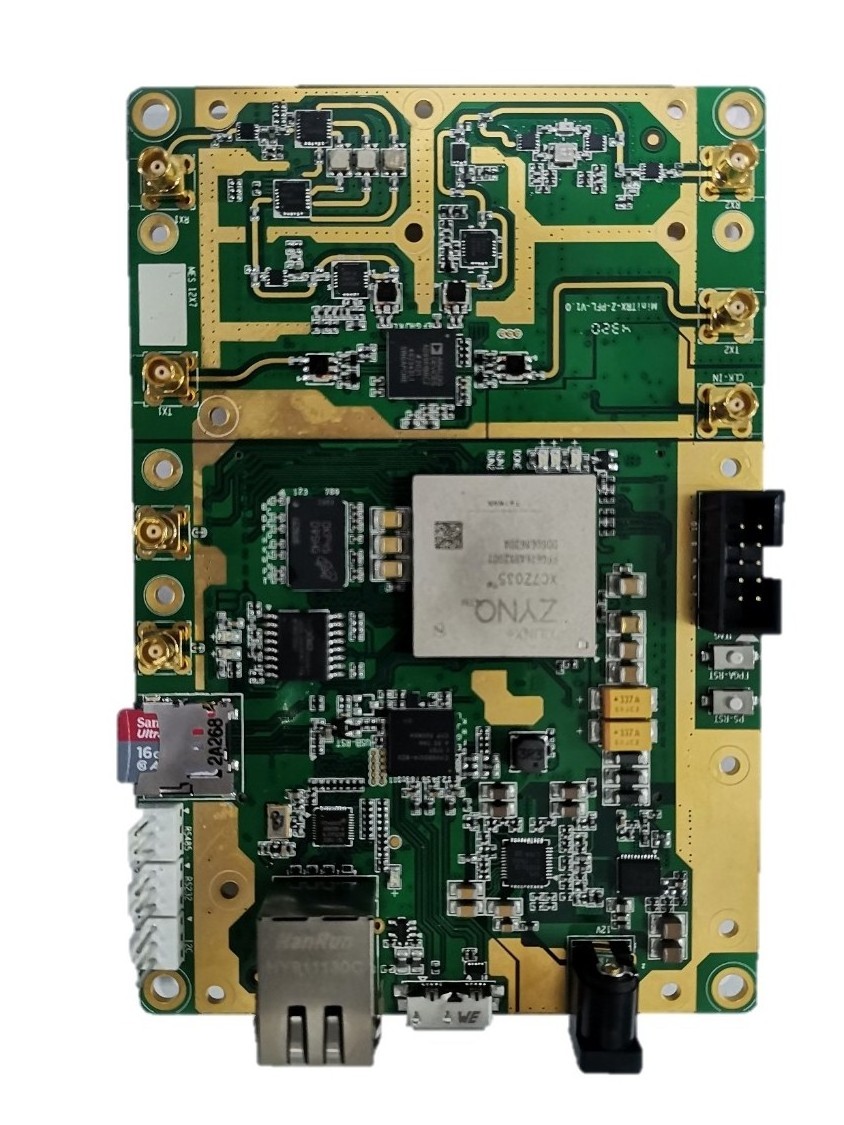

     MiniTRX-Z is a low-power and small footprint board, based on ADI's RadioVerseTM technology AD9361, enables dramatic reduction in design cycles of your products.
HJX MiniTRX-Z has been added to ADI's RadioVerseTM 3rd Party Reference Designs and Hardware

Product Details


　　Key Features


　　- FPGA:Xilinx Zynq XC7Z035-2FFG676I

　　- DDR:1GB DDR3
　　- FLASH:256Mb QSPI
　　- SD:MicroSD
　　- Ethernet:10/100/1000M
　　- USB:USB3.0
　　- Communication Interface:RS232/RS422/I2C
　　- Sensor:Humidity Sensor with Integrated Temperature
　　- User Interface:GPIO
　　- Rx LNA range:300MHz~6GHz
　　- RF Digital Step Attenuator(DSA):0~31.5dB attenuation range in 0.5dB steps(1MHz to 4GHz)
　　- Bypass LNA and DSA to support Rx:70MHz~6.0GHz
　　- Size: 140mm*95mm
　　- Analog Devices AD9361-BBCZ Integrated RF Agile Transceiver™
　　　　RF 2 × 2 transceiver with integrated 12-bit DACs and ADCs
　　　　Band: 70 MHz to 6.0 GHz
　　　　TDD and FDD operation
　　　　Tunable channel BW:<200 kHz to 56 MHz
　　　　Supports MIMO radio: < 1 sample sync on both ADC and DAC
　　　　Miniature RF connectors &ndash; 4 TX, 4 RX, 2 TX monitor

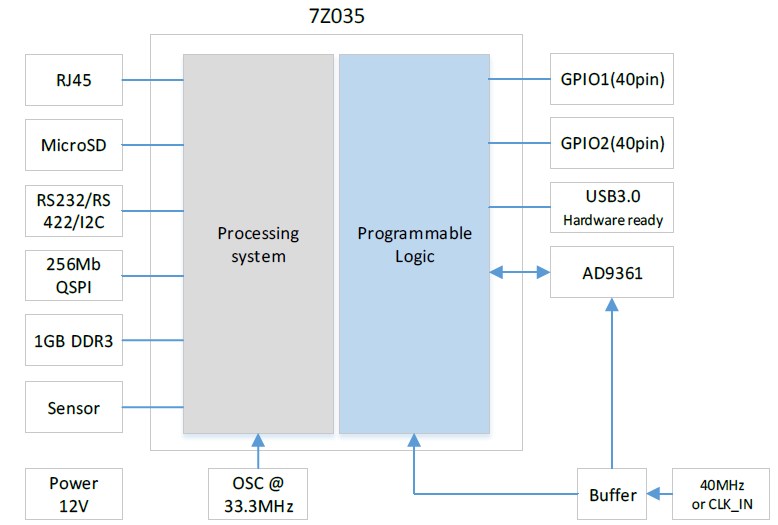

Figure2 - Simplified Block Diagram


　　MiniTRX-Z Getting Started Design

　　The Getting Started design implements the data interfaces to/from the AD9361 RF transceiver through which baseband signals are mixed to RF for over-the-air loopback from transmitter to receiver. Data path and control signals between the AD9361 and Zynq SoC are shown in Figure3.
　　-  MiniTRX-Z No-OS Software: based on ADI&rsquo;s AD9361 No-OS API Branch 2017_R1

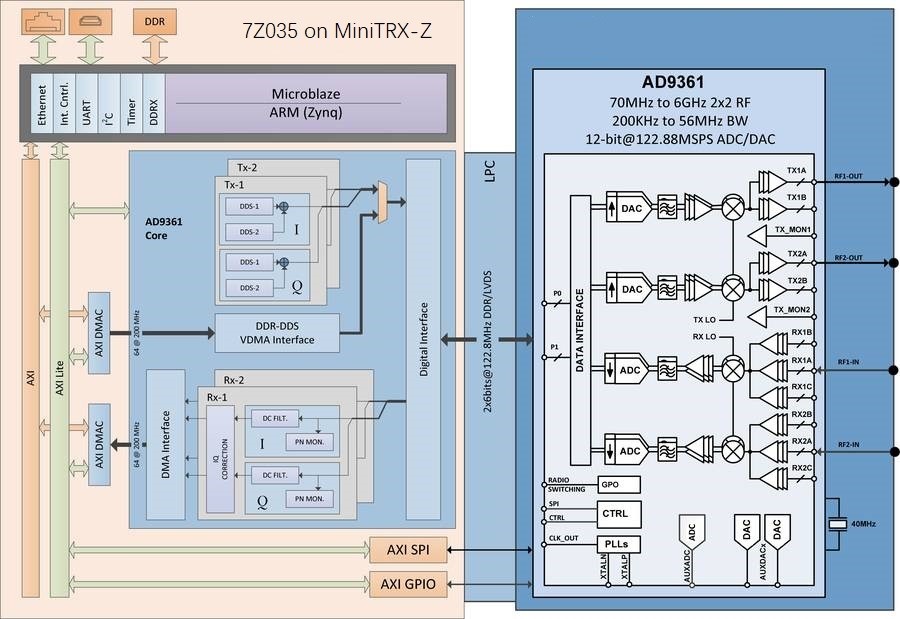

2.jpg　Figure3 - HDL Reference Design

　　MiniTRX-Z Interface

(1)     MCX AD9361 RX1

(2)     MCX AD9361 TX1
(3)     MCX AD9361 TX2
(4)     MCX AD9361 RX2
(5)     MCX CLK_IN ( 可選外參考時(shí)鐘)
(6)     JTAG
(7)     Power 12V
(8)     USB3.0
(9)     RJ45
(10)   I2C
(11)   RS232
(12)   RS422

(13)   MicroSD


　　Getting Started Guide
　　This guide will show you how to setup MiniTRX-Z board and your computer to get started.
　　MiniTRX-Z Getting Started Guide v1.1.pdf
